Understanding Kubernetes

Kubernetes, often abbreviated as K8s, is a powerful container orchestration platform that has revolutionized the way applications are deployed, managed, and scaled in modern cloud-native environments. Let's delve into the core concepts and benefits of Kubernetes.

What is Kubernetes?

Kubernetes is an open-source container orchestration system for automating the deployment, scaling, and management of containerized applications. It was originally developed by Google and is now maintained by the Cloud Native Computing Foundation (CNCF).

Key Points

• Container Orchestration Engine: Kubernetes provides a robust framework for managing containerized workloads, allowing you to create, delete, and update containers efficiently.
• Built on Docker: While Kubernetes can work with various container runtimes, Docker is often a prerequisite for understanding and working with Kubernetes. Docker provides the containerization technology that Kubernetes orchestrates.
• Cloud-Native Deployment: Kubernetes excels at deploying Docker images from registries in a cloud-native fashion, making it ideal for modern, distributed applications.
• Auto-healing: Kubernetes can automatically recover from failures by restarting or rescheduling containers to maintain the desired state of your application.
• Auto-scaling: Kubernetes provides constructs for automatically scaling applications based on resource utilization or custom metrics.
• Observability: Kubernetes offers a comprehensive view of your system through its dashboard and monitoring tools, simplifying management and troubleshooting.

Key Components of Kubernetes

To effectively use Kubernetes, understanding its main components is essential:

• Cluster: A Kubernetes cluster consists of a control plane and one or more compute machines, or nodes.
• Control Plane: The brain of Kubernetes, where task assignments and cluster management decisions originate.
• Kubelet: A service that runs on nodes, ensuring containers in a pod are running as expected.
• Pod: The smallest deployable unit in Kubernetes, consisting of one or more containers that share network and storage resources.

Kubernetes has become the de facto standard for container orchestration due to its robust features, extensive community support, and ability to handle complex, large-scale deployments. By automating many aspects of application deployment and management, Kubernetes enables organizations to build and operate applications more efficiently and at scale. As you dive deeper into Kubernetes, you'll discover its power in simplifying container management, enhancing application resilience, and enabling truly cloud-native architectures. Remember, mastering Kubernetes is a journey, but one that can significantly enhance your ability to deploy and manage modern, containerized applications.

Before Kubernetes

This section explores the typical architecture of web applications before Kubernetes, highlighting the improvements Kubernetes brings.

Traditional Web Application Architecture

Before Kubernetes, web applications were often deployed using a combination of various cloud services and infrastructure components. Let's break down the common architecture for backend and frontend deployments:

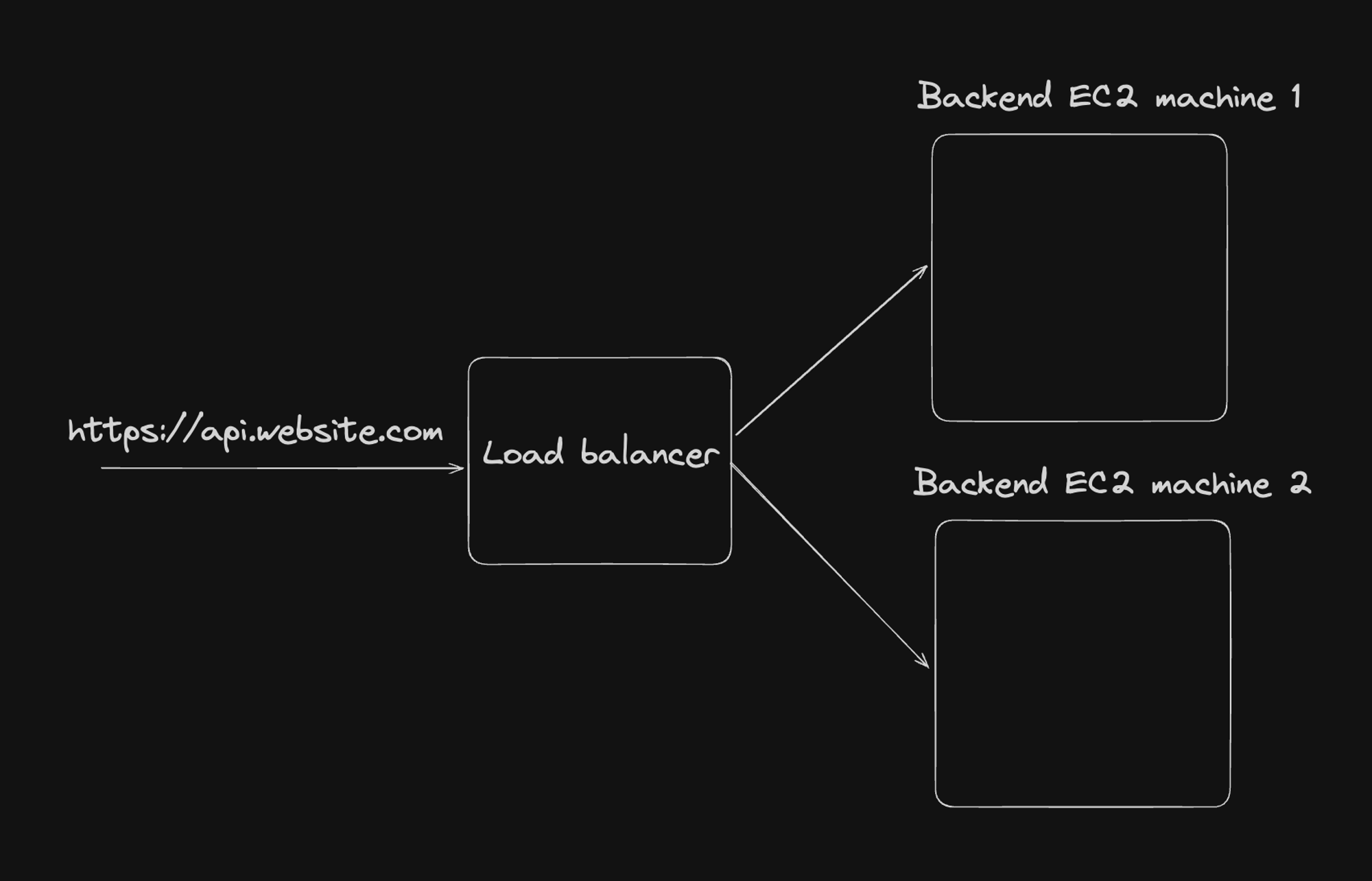

1. Backend Architecture

The backend architecture typically followed this pattern:

Key Components:

• Domain and HTTPS: Backend APIs were accessed via a subdomain (e.g., api.website.com) and secured with HTTPS.
• Load Balancer: Distributed traffic across multiple backend servers for reliability and scaling.
• EC2 Instances: Hosted backend services, with multiple instances for redundancy and load handling.
• Challenges:
  • Manual or script-based scaling.
  • Deploying updates often involved downtime or complex strategies.
  • Managing multiple instances increased operational complexity.

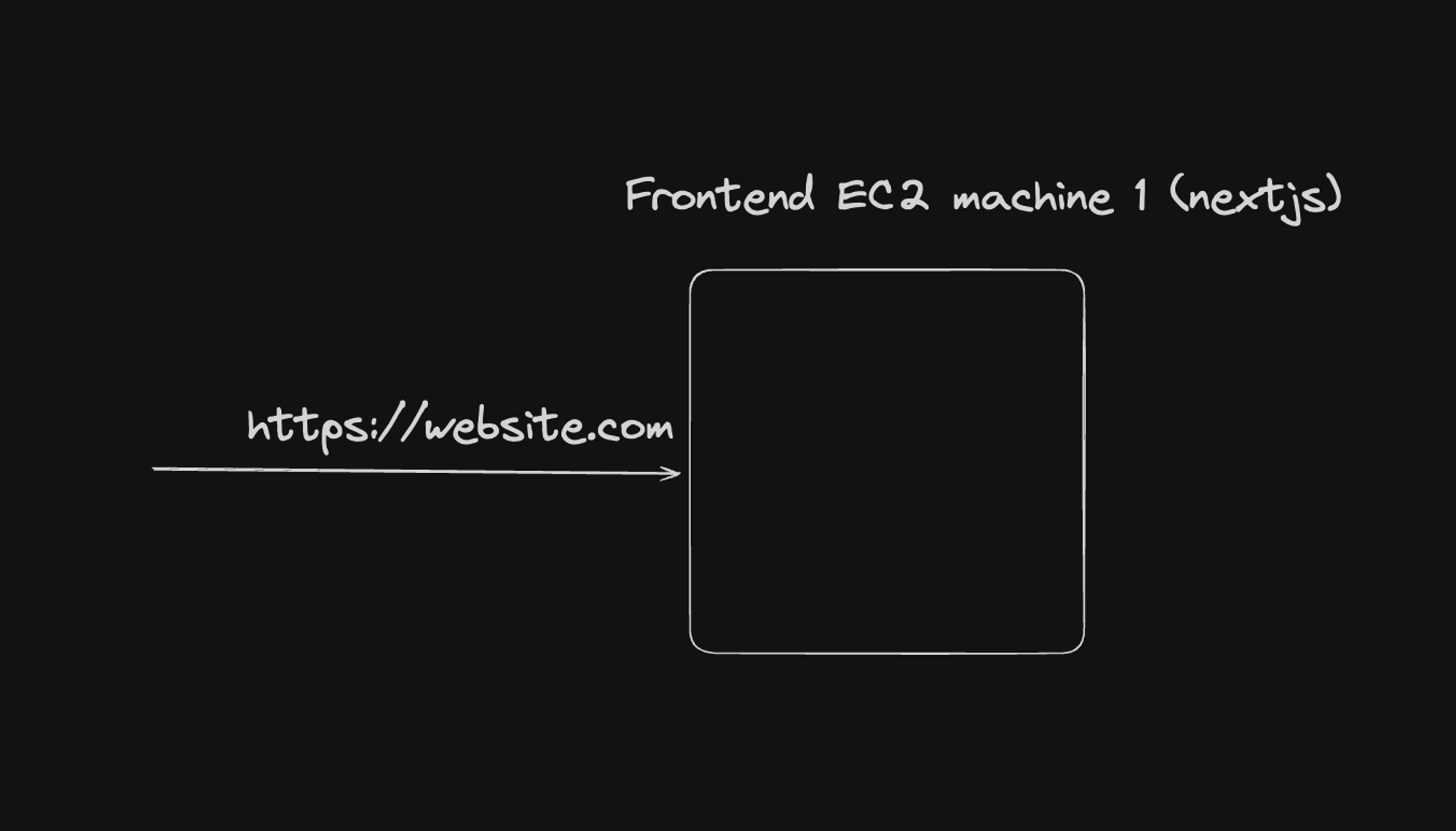

2. Frontend Architecture (Next.js)

For server-side rendered applications using frameworks like Next.js, the architecture was often:

Key Components:

• Domain and HTTPS: The main domain (website.com) pointed to the frontend server.
• EC2 Instance: Hosted the Next.js application for server-side rendering.

Challenges:

• Limited scalability with a single instance.
• Potential single point of failure.
• Updates could lead to downtime.

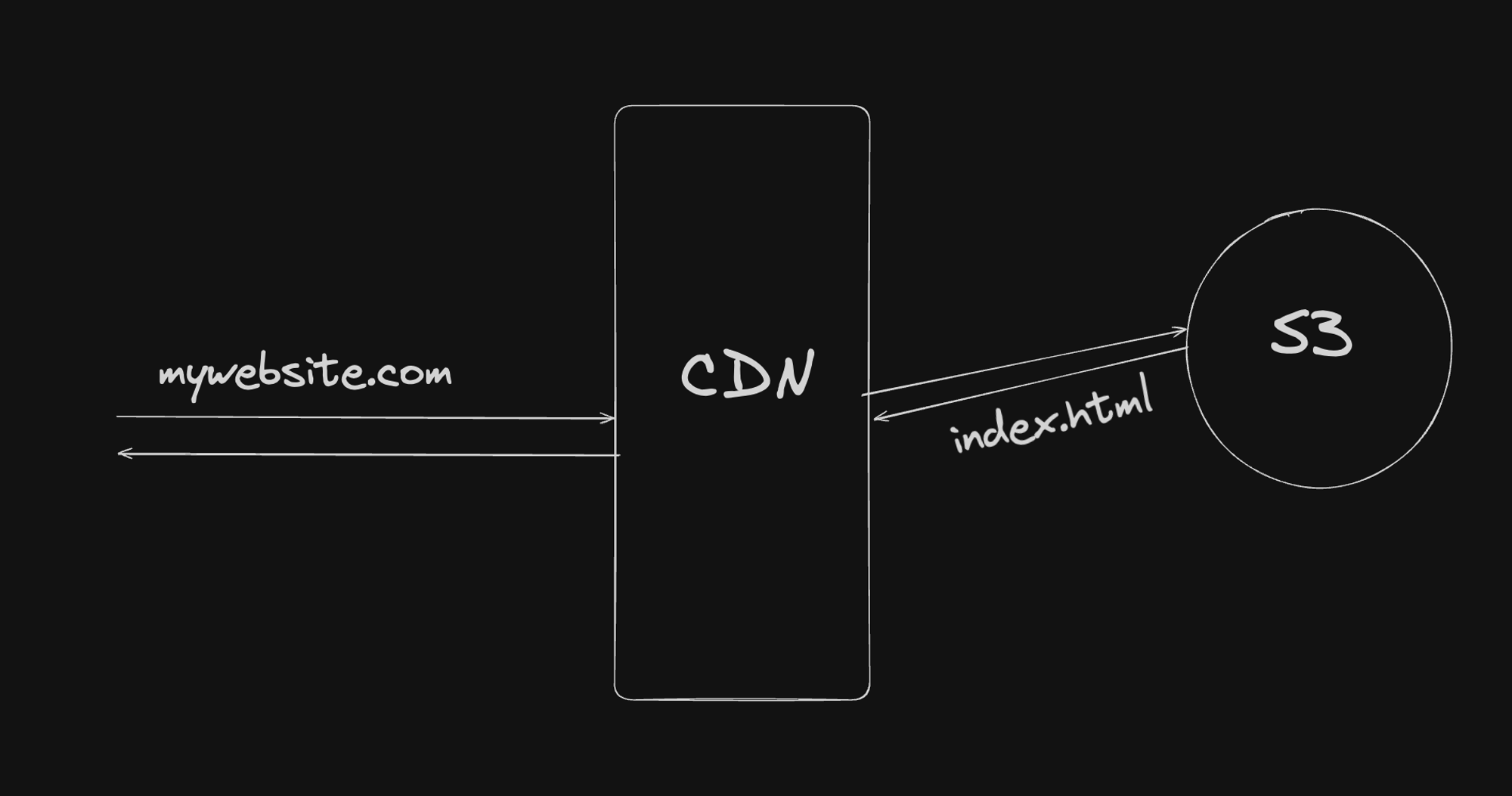

3. Frontend Architecture (React - Static Site)

For static single-page applications built with frameworks like React, a common architecture was:

Key Components:

• Domain: Pointed to a Content Delivery Network (CDN).
• CDN: Cached and served static assets globally (e.g., Amazon CloudFront).
• S3: Hosted static files of the React application.

Advantages:

• Highly scalable and cost-effective for static content.
• Global distribution improved performance.
• Easy updates by uploading new files to S3.

Challenges:

• Limited to static content.
• Complex setups for server-side rendering or dynamic routes.

Limitations of Pre-Kubernetes Architectures

While these architectures were functional, they had several limitations:

1. Complex Scaling: Scaling applications often required manual intervention or complex automation scripts.
2. Resource Utilization: EC2 instances were often underutilized, leading to inefficient resource allocation.
3. Deployment Complexity: Deploying updates, especially for backend services, could be complex and risky.
4. Limited Portability: Applications were often tightly coupled with the specific cloud provider's services.
5. Operational Overhead: Managing multiple EC2 instances, load balancers, and other components increased operational complexity.

Summary

The pre-Kubernetes era of web application deployment was characterized by static, often manually managed infrastructures. While these setups were functional, they lacked the flexibility, scalability, and efficiency that modern containerized applications require.

Kubernetes addresses these limitations by providing:

• Automated scaling and load balancing.
• Efficient resource utilization through containerization.
• Simplified deployment and update processes.
• Improved portability across environments.
• Reduced operational overhead through automation.

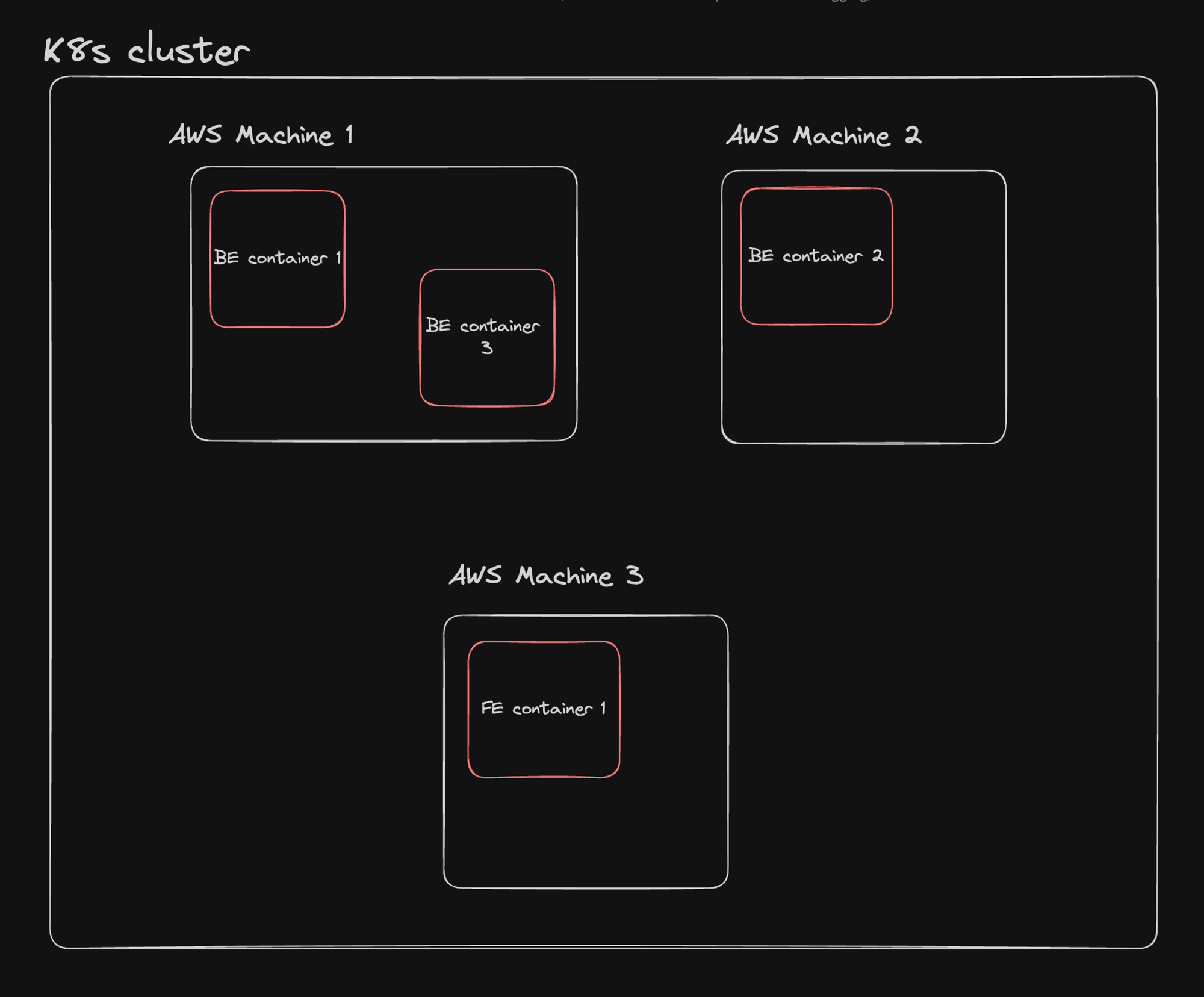

After Kubernetes

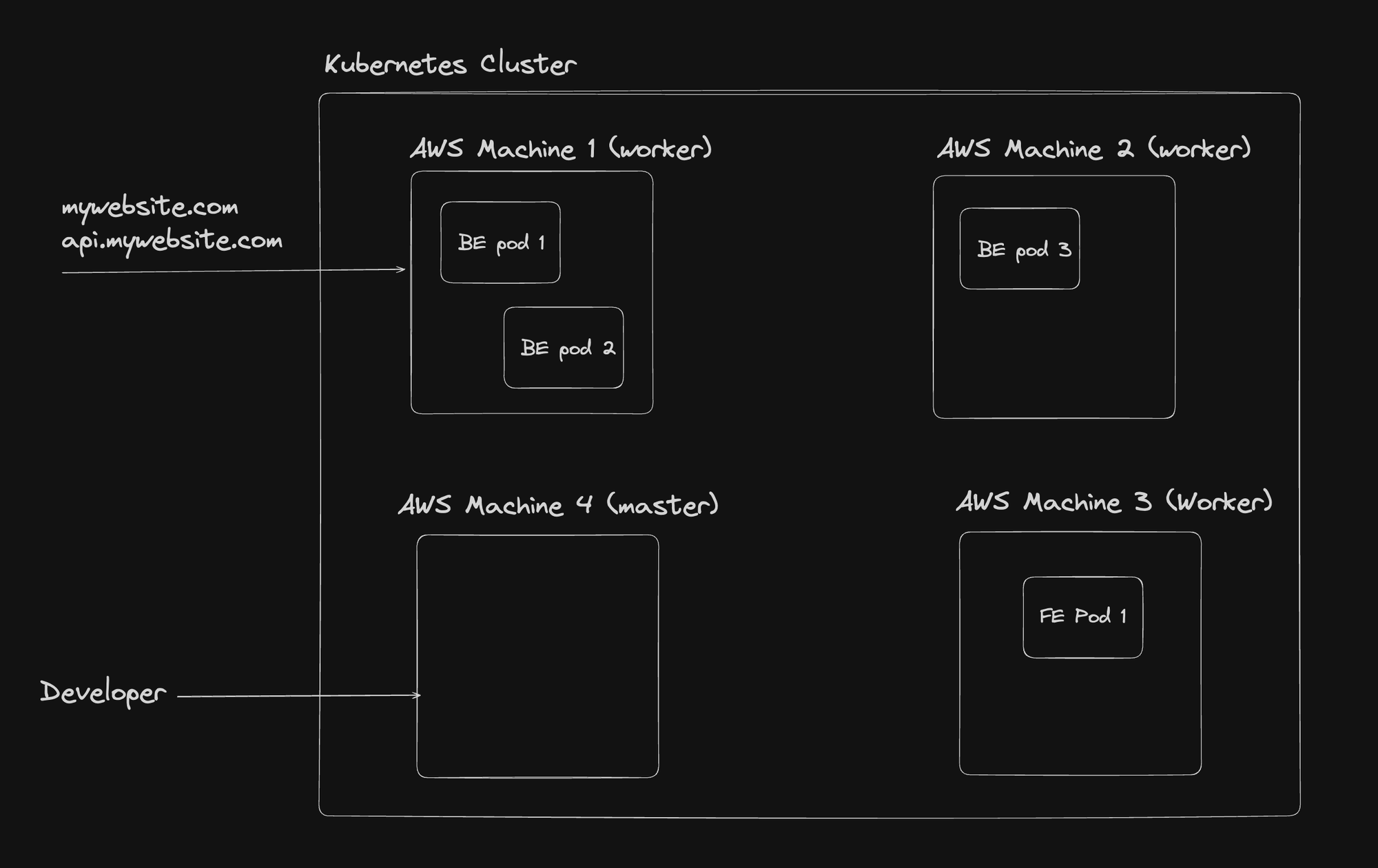

With Kubernetes, both frontend and backend components of your application are deployed as pods within a Kubernetes cluster. This unified approach simplifies management and improves scalability.

Key Kubernetes Concepts

1. Nodes

Nodes are the building blocks of a Kubernetes cluster. They are machines (physical or virtual) that run Kubernetes and your containerized applications.

1. Master Node (Control Plane):

• Manages the cluster state, scheduling, scaling, and updates.
• Components: API Server, Scheduler, Controller Manager, etcd.
• Key components include:
  • API Server
  • Scheduler
  • Controller Manager
  • etcd (distributed key-value store)

2. Worker Nodes:

• Run the actual application workloads
  • Host the pods that contain your application containers
  • Key components include:
    • Kubelet (communicates with the control plane)
    • Container runtime (e.g., Docker)
    • Kube-proxy (network proxy)

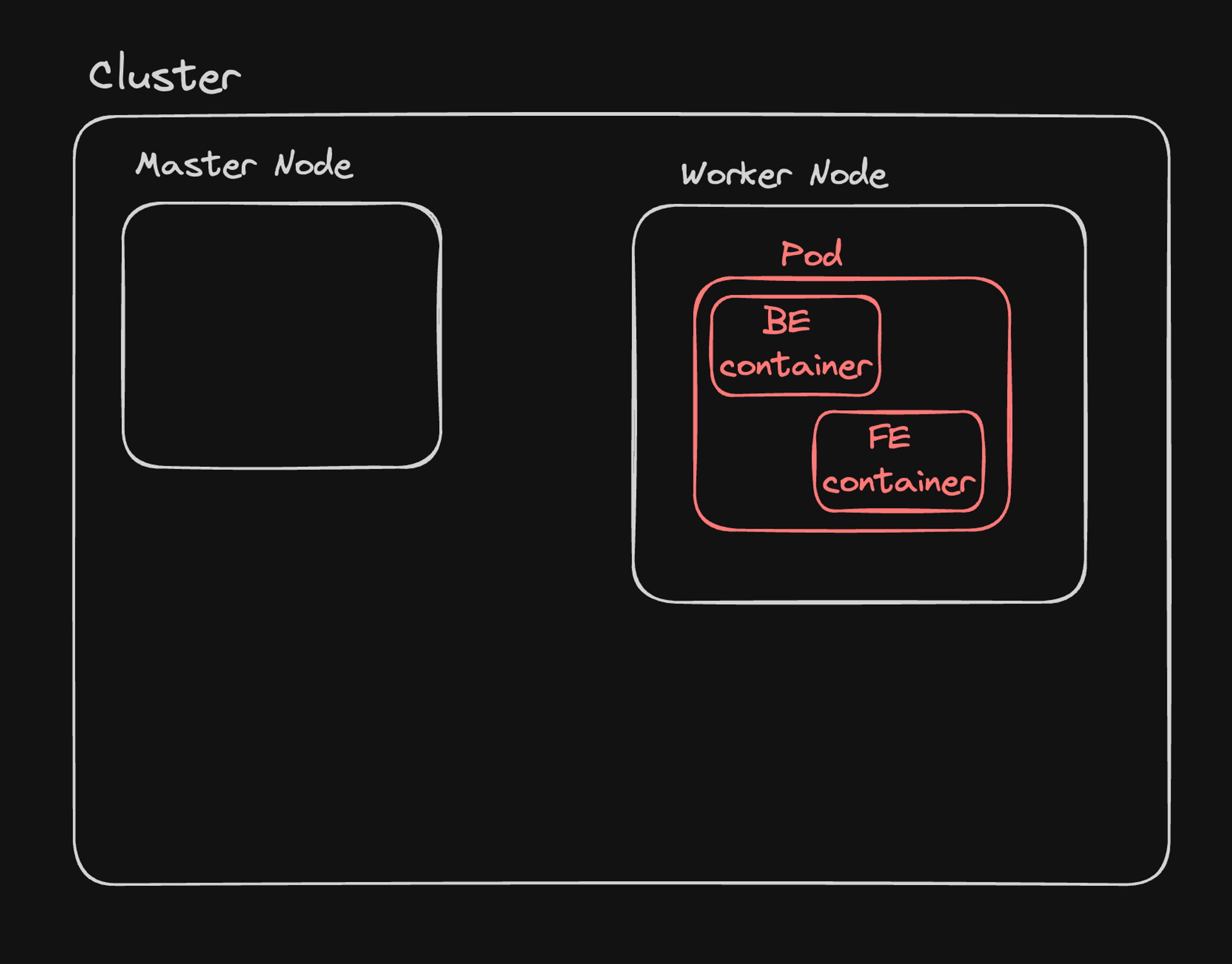

2. Cluster

A Kubernetes cluster consists of at least one master node and multiple worker nodes, providing:

• High availability.
• Load balancing.
• Scalability.
• Efficient resource utilization.

3. Images

In the context of Kubernetes, images refer to Docker images. Key points about images:

• Self-contained packages including all dependencies
• Built from instructions in a Dockerfile
• Stored in container registries (e.g., Docker Hub)
• Used to create containers

Example: The official MongoDB image (https://hub.docker.com_/mongo) can be used to deploy MongoDB instances in your cluster.

4. Containers

Containers are running instances of images, offering:

• Application and dependency isolation.
• Consistency across environments.
• Efficient resource utilization.

Example of running a PostgreSQL container:

docker run -p 5432:5432 -e POSTGRES_PASSWORD=mysecretpassword -d postgres

This command creates a container from the PostgreSQL image, mapping port 5432 and setting an environment variable for the password.

5. Pods

Pods are the smallest deployable units in Kubernetes, containing one or more containers that share network and storage resources.

• Can contain one or more containers
• Share network namespace and storage
• Are ephemeral (can be created, destroyed, and replaced dynamically)
• Represent a single instance of an application

Advantages of Kubernetes Architecture

• Unified Management: All components (frontend, backend, databases) are managed uniformly within the Kubernetes ecosystem.
• Scalability: Easily scale applications by adjusting the number of pod replicas or nodes.
• Self-healing: Kubernetes automatically restarts failed containers or replaces pods on node failures.
• Load Balancing: Built-in load balancing distributes traffic across pods.
• Rolling Updates: Perform updates with zero downtime using rolling update strategies.
• Resource Efficiency: Better utilization of hardware resources across the cluster.

Kubernetes vs. Traditional Architecture

Aspect	Traditional	Kubernetes
Deployment	Manual or script-based	Declarative, version-controlled
Scaling	Manual or custom automation	Automatic based on metrics
High Availability	Complex setup	Built-in with multi-node clusters
Resource Utilization	Often inefficient	Optimized through container packing
Updates	Can involve downtime	Rolling updates with zero downtime
Service Discovery	Manual configuration	Automatic within the cluster

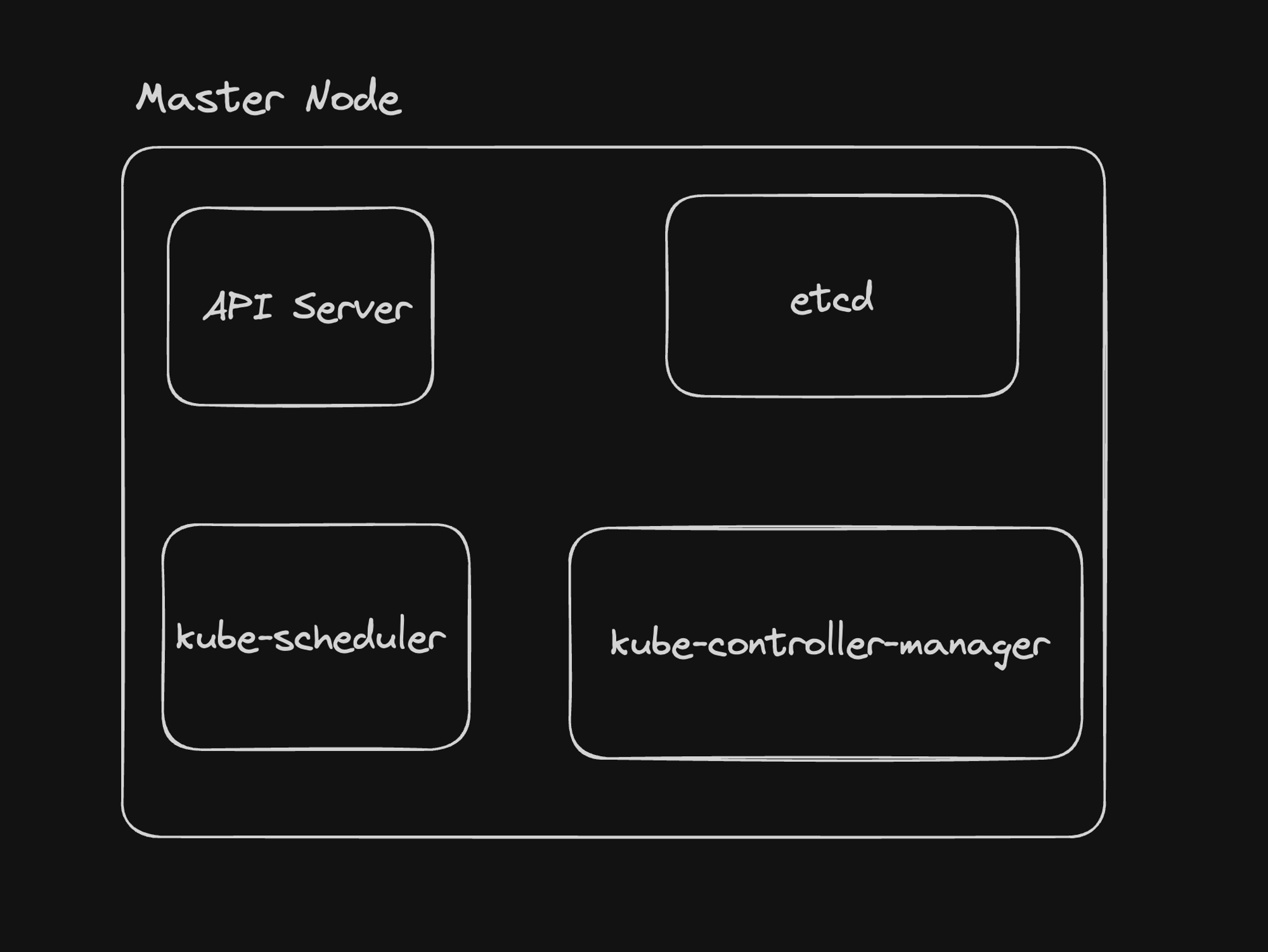

Master Node (Control Plane)

The Master Node, also known as the Control Plane, is the brain of a Kubernetes cluster. It's responsible for maintaining the desired state of the cluster, making global decisions about the cluster, and responding to cluster events. Let's dive into the key components of the Master Node and their functions.

Components of the Master Node

1. API Server:

The API Server is the front-end for the Kubernetes control plane, exposing the Kubernetes API. It's the primary management point for the entire cluster.

Key responsibilities:

• Handling RESTful API Requests: Processes and responds to API requests from various clients (kubectl, other Kubernetes components, external applications).
• Authentication and Authorization: Ensures only authenticated and authorized entities can perform actions on the cluster.
• Metrics and Health Checks: Exposes endpoints for monitoring and diagnosing the control plane's health and performance.
• Communication Hub: Acts as the central point of communication for all cluster components.

2. etcd:

etcd is a consistent and highly-available key-value store used as Kubernetes' backing store for all cluster data.

Key features:

• Distributed: Ensures high availability and consistency across multiple nodes.
• Reliable: Provides strong consistency guarantees for cluster data.
• Fast: Optimized for rapid reads and writes of small amounts of data.
• Secure: Supports SSL/TLS client certificates for secure communication.

Reference: https://etcd.io/docs/v3.5/quickstart/

3. kube-scheduler:

The kube-scheduler is responsible for assigning newly created pods to nodes in the cluster.

Key functions:

• Pod Placement: Decides which node is best suited for running a newly created or unscheduled pod.
• Resource Evaluation: Considers factors like resource requirements, hardware/software/policy constraints, affinity and anti-affinity specifications, and data locality.
• Optimization: Aims to balance resource utilization across nodes.

4. kube-controller-manager:

The kube-controller-manager runs controller processes that regulate the state of the cluster.

Key controllers:

• Node Controller: Monitors node health and responds when nodes go down.
• Deployment Controller: Manages the lifecycle of deployments, ensuring the desired state is maintained.
• ReplicaSet Controller: Ensures the correct number of pod replicas are running.
• Endpoint Controller: Populates the Endpoints object (joins Services & Pods).
• Service Account & Token Controllers: Create default accounts and API access tokens for new namespaces.
• Reference: https://kubernetes.io/docs/concepts/architecture/controller/

How the Control Plane Components Work Together

1. API Server as the Hub: All components interact with the API server to update or retrieve cluster state.
2. etcd as the Source of Truth: The API server stores and retrieves cluster state from etcd.
3. Controllers Watch for Changes: The controller manager runs various controllers that watch the API server for changes and work to move the current state towards the desired state.
4. Scheduler Makes Placement Decisions: When new pods need to be scheduled, the scheduler determines the best node for placement based on current cluster state and constraints.

Example Workflow

Let's consider an example of deploying a new application:

1. A user submits a deployment manifest using kubectl.
2. The API server validates and persists this information to etcd.
3. The Deployment controller notices the new deployment and creates a ReplicaSet.
4. The ReplicaSet controller notices the new ReplicaSet and creates Pod objects.
5. The Scheduler notices unassigned pods and decides which nodes they should run on.
6. Kubelet on the selected worker nodes pull the necessary images and start the containers.

Conclusion

The Master Node's components work in concert to manage the entire Kubernetes cluster. Understanding these components and their interactions is crucial for effectively managing and troubleshooting Kubernetes deployments.

Key takeaways:

• The API Server is the central communication hub.
• etcd provides reliable storage for cluster state.
• The Scheduler makes intelligent placement decisions for pods.
• Controllers continuously work to maintain the desired state of the cluster.

Worker Nodes

Worker nodes are the workhorses of a Kubernetes cluster, responsible for running the actual application workloads. Let's explore the key components that make up a worker node and their functions.

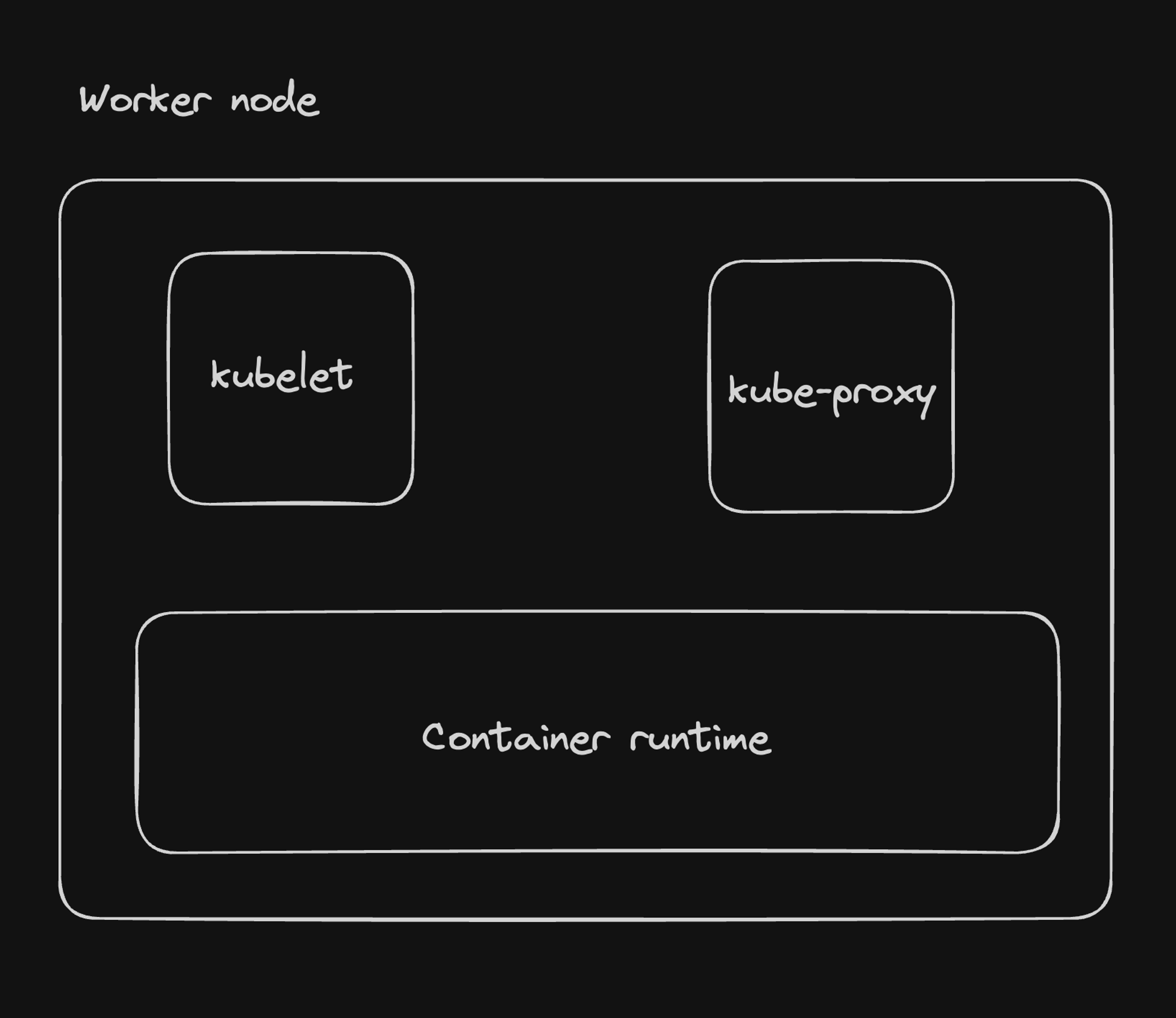

Key Components of a Worker Node

1. kubelet:

The kubelet is a critical agent that runs on each node in the cluster, ensuring that containers are running in a Pod as expected.

How the kubelet Control Loop Works:

1. Watch for PodSpecs: The kubelet continuously monitors the API server for new or updated PodSpecs assigned to its node.
2. Reconcile Desired State: It compares the current state of the node with the desired state defined in the PodSpecs.
3. Take Action: Based on this comparison, the kubelet performs necessary actions:
   • Starts new pods by pulling container images and creating containers
   • Monitors container health through liveness and readiness probes
   • Updates existing pods as needed
   • Stops and removes containers for terminated pods
4. Report Status: The kubelet regularly reports pod and node status back to the API server, including resource usage and container statuses.

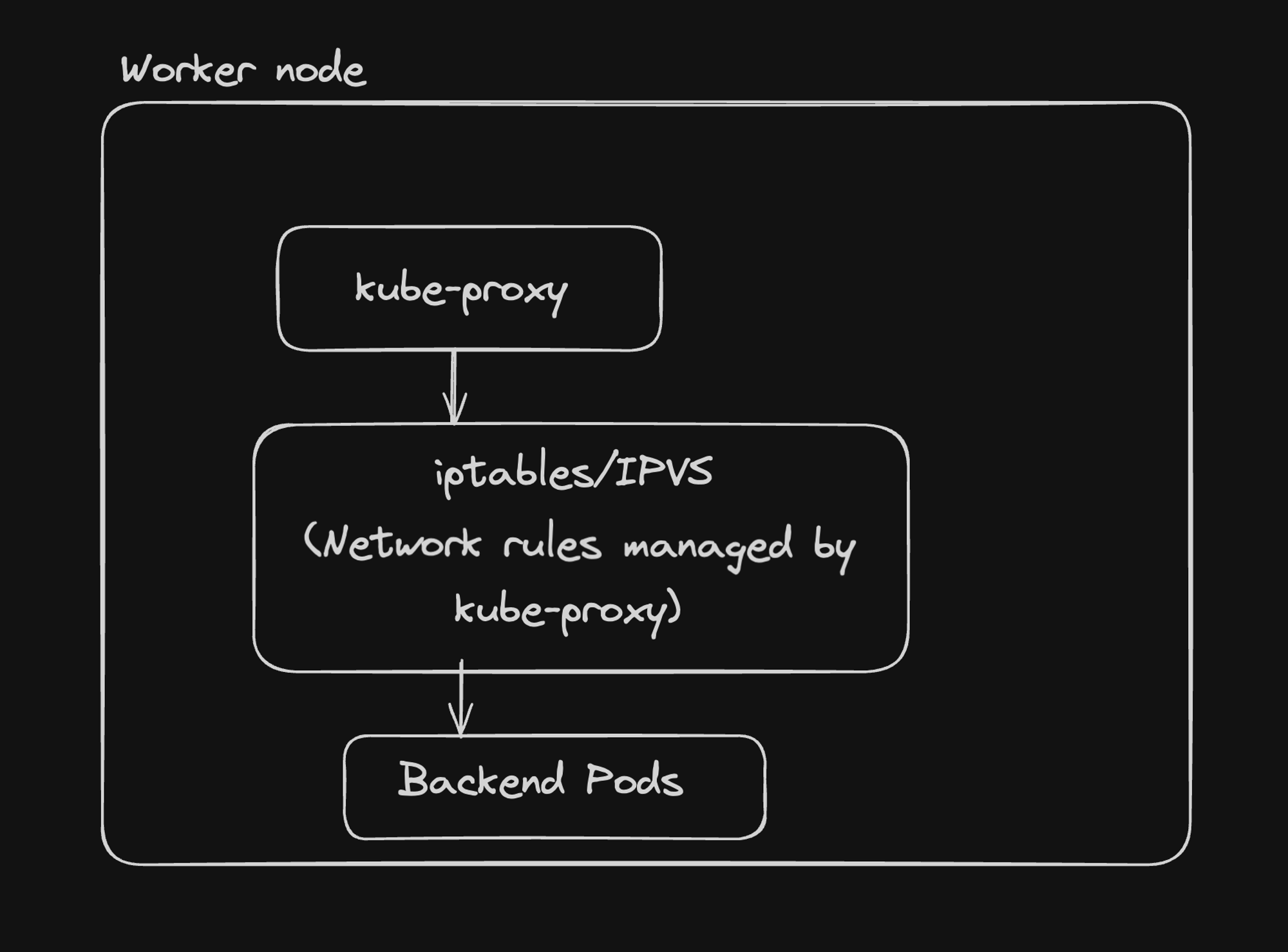

2. kube-proxy:

The kube-proxy is a network proxy that runs on each node, facilitating network communication to and from pods.

Key functions:

• Maintains network rules on nodes
• Performs connection forwarding
• Implements part of the Kubernetes Service concept

Container Runtime Interface (CRI)

The Container Runtime Interface (CRI) is a crucial abstraction layer that allows Kubernetes to support multiple container runtimes without needing to know the specifics of each. This provides flexibility and choice for users in selecting their preferred container runtime.

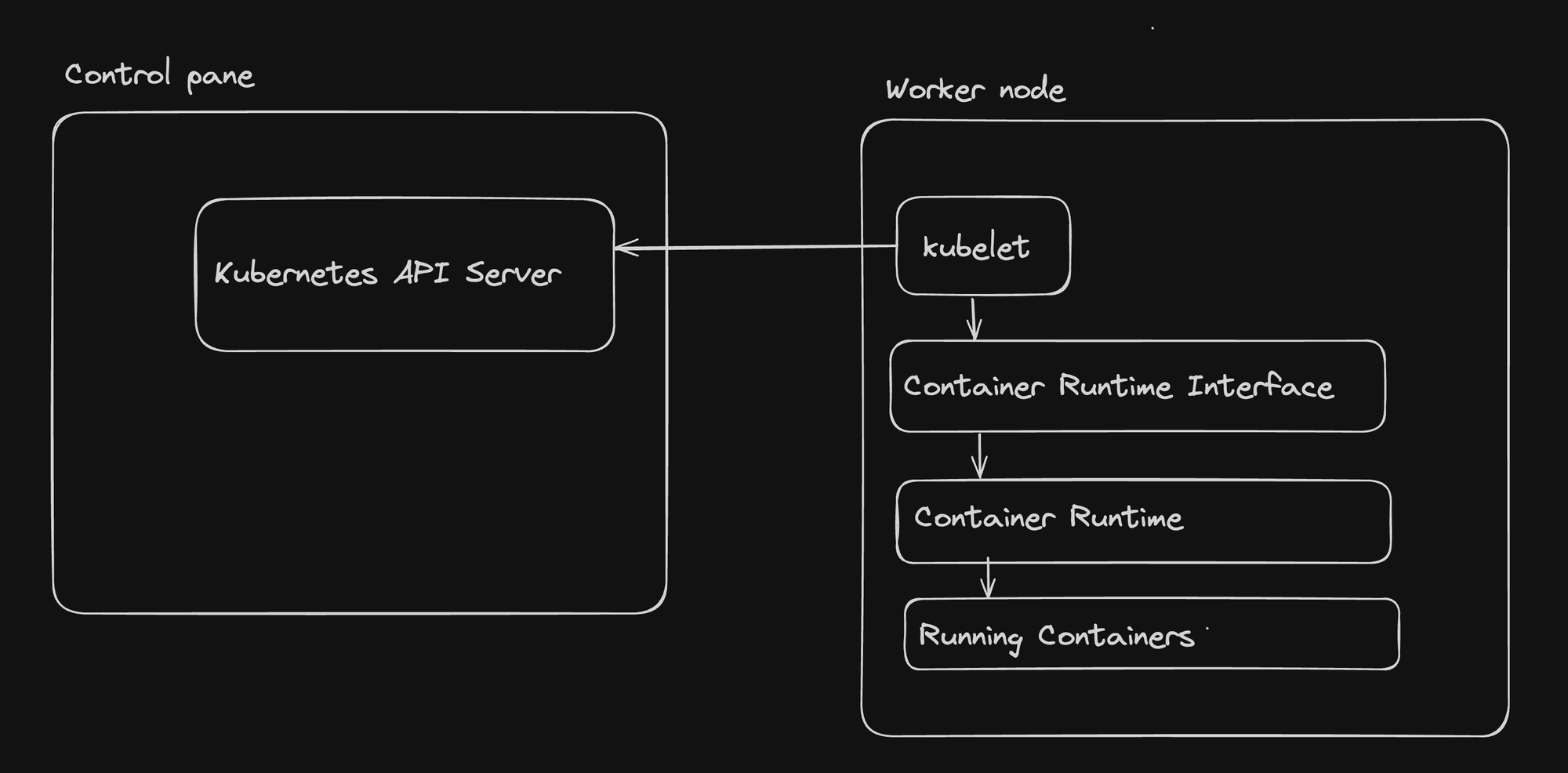

How Worker Node Components Interact

1. kubelet and Container Runtime: The kubelet interacts with the container runtime through the CRI to manage container lifecycles.
2. kubelet and API Server: The kubelet communicates with the API server to receive pod specifications and report node and pod status.
3. kube-proxy and Network: kube-proxy manages network rules to enable communication with pods from within or outside the cluster.
4. Container Runtime and Containers: The container runtime is responsible for the actual execution and management of containers based on instructions from the kubelet.

Example Workflow on a Worker Node

1. The API server assigns a new pod to the node.
2. The kubelet receives the pod specification.
3. The kubelet instructs the container runtime to pull necessary images and start containers.
4. The container runtime executes the containers.
5. The kubelet monitors the health of the containers and reports status to the API server.
6. kube-proxy sets up necessary network rules for the new pod.

Conclusion

Worker nodes are essential components of a Kubernetes cluster, hosting the actual application workloads. The interplay between the kubelet, kube-proxy, and container runtime enables efficient container management, networking, and execution of applications.

Key takeaways:

• The kubelet is the primary node agent, ensuring pods run as expected.
• kube-proxy manages network rules for pod communication.
• The container runtime, accessed through the CRI, handles the actual execution of containers.
• These components work together to maintain the desired state of applications running on the node.

Understanding these components and their interactions is crucial for effectively managing and troubleshooting Kubernetes deployments at the node level.

Creating a Kubernetes Cluster

Setting up a Kubernetes cluster is a crucial step in working with Kubernetes. There are several ways to create a cluster, depending on your needs and environment. Let's explore the options for creating Kubernetes clusters both locally and in the cloud.

Local Kubernetes Clusters

For development and testing purposes, you can set up a Kubernetes cluster on your local machine. Two popular tools for this are:

1. Minikube:

Kind is a tool for running local Kubernetes clusters using Docker container "nodes".

To set up Kind:

1. Install Kind: https://kind.sigs.k8s.io/docs/user/quick-start/#installation

2. Create a single-node cluster:

   • Lightweight Kubernetes for local development.
   • Install: Minikube Start.
   • Start:

   minikube start

   • Verify:

   docker ps

   You should see a single node setup.

2. Kind (Kubernetes IN Docker):

Kind is a tool for running local Kubernetes clusters using Docker container "nodes".

To set up Kind:

1. Install Kind: https://kind.sigs.k8s.io/docs/user/quick-start/#installation
2. Create a single-node cluster:

kind create cluster --name local

3. Verify the setup:

docker ps

You should see a single container running (control-plane).

4. To delete the cluster:

kind delete cluster -n local

Multi-node setup:

1. Create a clusters.yml file:

kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
- role: worker
- role: worker

2. Create the multi-node cluster:

kind create cluster --config clusters.yml --name local

3. Verify the setup:

docker ps

You should see multiple containers representing the control-plane and worker nodes.

Cloud-based Kubernetes Clusters

For production environments or larger-scale testing, cloud-based Kubernetes services are often preferred:

1. Google Kubernetes Engine (GKE): Managed Kubernetes service by Google Cloud.
2. Amazon Elastic Kubernetes Service (EKS): Managed Kubernetes service by AWS.
3. Azure Kubernetes Service (AKS): Managed Kubernetes service by Microsoft Azure.
4. Vultr Kubernetes Engine: Managed Kubernetes service by Vultr.

These services handle much of the cluster management overhead, allowing you to focus on deploying and managing your applications.

Best Practices and Considerations

1. Multi-node Clusters: While single-node setups are convenient for development, they're not ideal for production. In a proper cluster, you should separate the control plane from worker nodes.
2. Resource Allocation: Ensure your local machine has sufficient resources (CPU, memory) when running local clusters, especially multi-node setups.
3. Persistent Storage: For local development, be aware that data may not persist when you delete and recreate clusters. Plan accordingly for stateful applications.
4. Network Considerations: Local clusters may have limitations in terms of network functionality compared to cloud-based clusters.
5. Version Compatibility: Ensure the Kubernetes version in your local setup matches or is close to your production environment to avoid compatibility issues.

Conclusion

Creating a Kubernetes cluster is the first step in your Kubernetes journey. Local setups like Minikube and Kind are excellent for development and learning, while cloud-based solutions offer scalability and robustness for production workloads.

Key takeaways:

• Minikube and Kind offer simple ways to run Kubernetes locally.
• Multi-node setups provide a more realistic cluster environment.
• Cloud-based solutions like GKE, EKS, and AKS offer managed Kubernetes services for production use.
• Consider factors like resource allocation, persistence, and network functionality when choosing your cluster setup.

As you progress, you'll likely use a combination of local and cloud-based clusters for different stages of your development and deployment pipeline.

Kubernetes API

The Kubernetes API is a crucial component of the control plane, exposed by the master node. It serves as the primary interface for developers and administrators to interact with the cluster. Here's a breakdown of the key points:

1. API Exposure: The master node (control plane) exposes an API that developers can use to manage the cluster, including starting pods.
2. API Server Location: To find where the control plane is running, you can use the docker ps command. This will show you the containers running on your local machine, including the Kubernetes API server.
3. API Endpoints: The API server provides various endpoints for different Kubernetes resources. For example, you can access pod information using an endpoint like:

<https://127.0.0.1:50949/api/v1/namespaces/default/pods>

The exact port (50949 in this case) may vary depending on your setup.

4. Authentication and Authorization: The Kubernetes API server implements authentication checks to prevent unauthorized access. When you try to access the API directly, you'll likely encounter authentication errors.
5. Credentials Storage: For local development environments like Kind (Kubernetes in Docker), your authorization credentials are typically stored in the ~/.kube/config file. This file contains the necessary information for tools like kubectl to authenticate with your cluster.

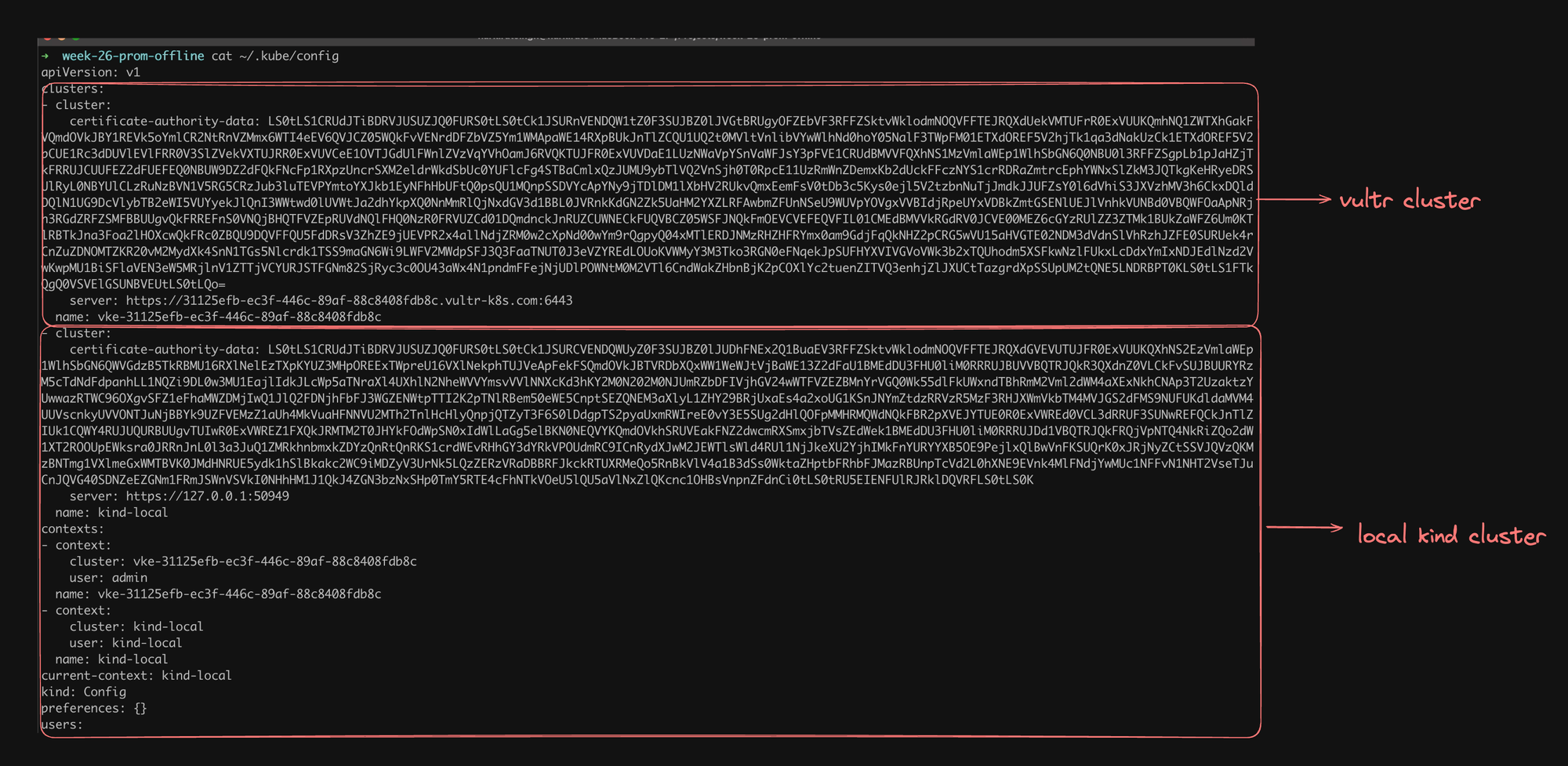

6. Multiple Clusters: The image shows that there are credentials for multiple clusters in the kubeconfig file, including a VULTR CLUSTER and a LOCAL KIND CLUSTER. This demonstrates that you can manage multiple Kubernetes clusters from the same machine.

The Kubernetes API is a powerful interface that allows programmatic control over your cluster. While it's possible to interact with it directly, tools like kubectl provide a more manageable and secure way to work with your Kubernetes resources. Understanding the API structure and security mechanisms is crucial for effectively managing and developing applications on Kubernetes.

Understanding and Using kubectl

kubectl is an essential command-line tool for interacting with Kubernetes clusters. It provides a user-friendly interface to communicate with the Kubernetes API server and manage various Kubernetes resources. Let's explore how to set up and use kubectl effectively.

Installing kubectl

To get started with kubectl, you need to install it on your local machine:

1. Visit the official Kubernetes documentation for installation instructions: https://kubernetes.io/docs/tasks/tools/#kubectl
2. Follow the instructions specific to your operating system (Linux, macOS, or Windows).
3. After installation, verify that kubectl is correctly installed by running:

kubectl version --client

Basic kubectl Commands

Once installed, you can start using kubectl to interact with your Kubernetes cluster. Here are some fundamental commands:

1. Get Nodes:

kubectl get nodes

This command lists all the nodes in your cluster.

2. Get Pods:

kubectl get pods

This command lists all the pods in the default namespace.

Verifying kubectl Configuration

To ensure kubectl is properly configured to communicate with your cluster:

1. Run: kubectl get nodes If this returns a list of nodes, your kubectl is correctly configured.
2. If you encounter any issues, check your kubeconfig file (usually located at ~/.kube/config) to ensure it contains the correct cluster information.

Best Practices for Using kubectl

1. Use Namespaces: When working with multiple projects or teams, use namespaces to organize your resources:

kubectl get pods -n my-namespace

2. Leverage kubectl Contexts: If you work with multiple clusters, use contexts to switch between them easily:

kubectl config use-context my-cluster-context

3. Use kubectl Explain: To get information about resource types, use the explain command:

kubectl explain pods

4. Utilize kubectl Apply: For declarative management of resources, use kubectl apply instead of create:

kubectl apply -f my-resource.yaml

5. Practice with Dry Runs: Before making changes, use the -dry-run=client flag to see what would happen:

kubectl create deployment my-dep --image=nginx --dry-run=client -o yaml

Creating a Pod

Now that we understand the basic components of Kubernetes, let's walk through the process of creating and managing a pod. We'll use the NGINX web server as an example.

Finding and Testing an Image

1. Choosing an Image: We'll use the official NGINX image from Docker Hub: https://hub.docker.com/_/nginx
2. Testing Locally with Docker: Before deploying to Kubernetes, it's good practice to test the image locally:

docker run -p 3005:80 nginx

This command runs an NGINX container, mapping port 80 in the container to port 3005 on your local machine.

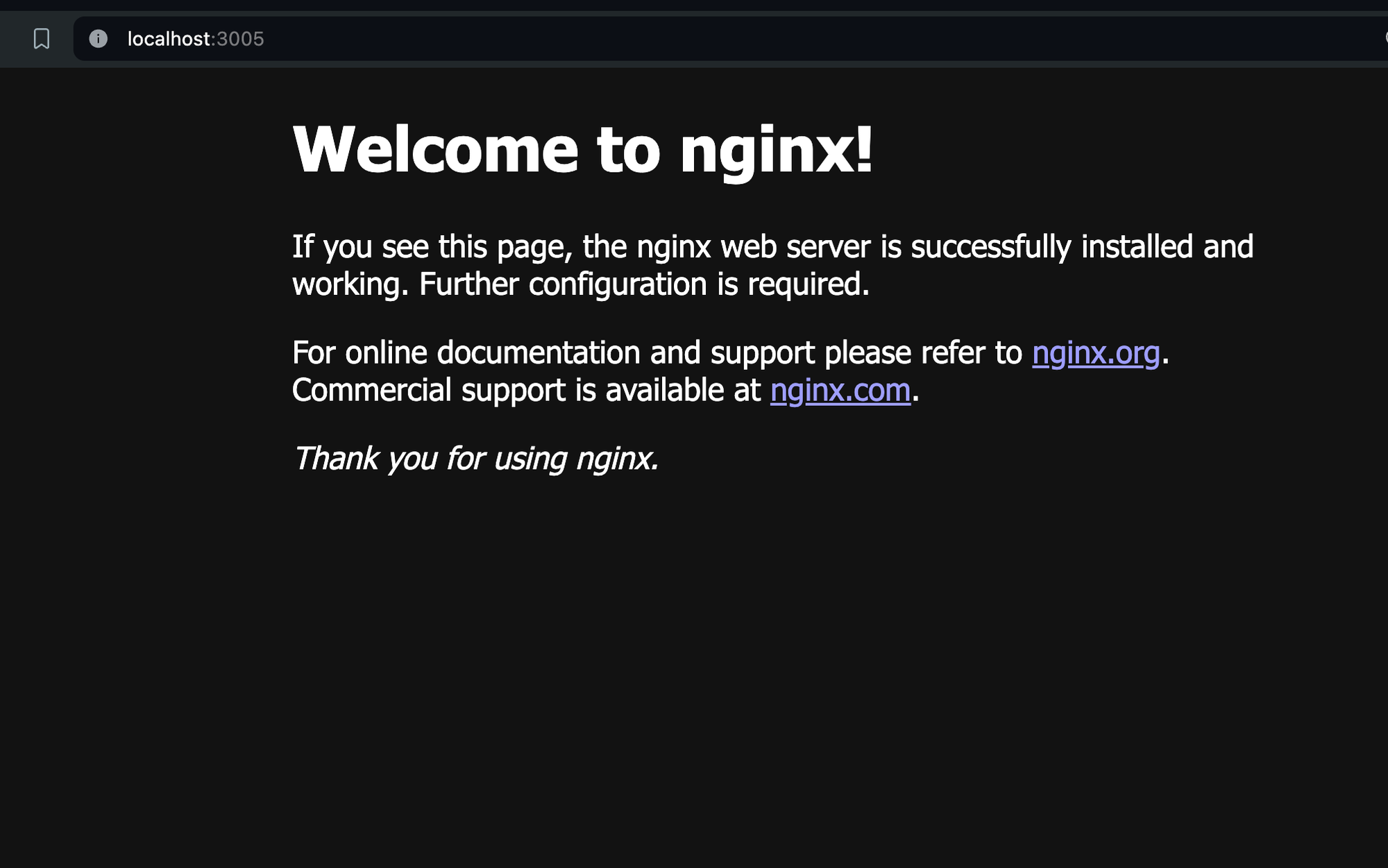

3. Verifying Local Deployment: Visit localhost:3005 in your web browser. You should see the NGINX welcome page.

Deploying a Pod in Kubernetes

Now, let's deploy this image as a pod in our Kubernetes cluster:

1. Create a Pod:

kubectl run nginx --image=nginx --port=80

This command creates a pod named "nginx" using the nginx image, exposing port 80.

2. Check Pod Status:

kubectl get pods

This will show the status of your pod. Wait until it shows "Running".

3. View Pod Logs:

kubectl logs nginx

This displays the logs from your NGINX pod.

4. Describe the Pod:

kubectl describe pod nginx

This provides detailed information about the pod, including its current state, IP address, and events.

Understanding the Current Setup

At this point, you have:

• A Kubernetes cluster with 3 nodes, Cluster: 1 control plane, 2 worker nodes.
• A single NGINX pod running on a worker node.

Important Questions and Answers

1. Stop a pod: kubectl delete pod nginx.

2. How can I visit the pod? Which port is it available on?

The pod is not directly accessible from outside the cluster. To access it, you need to expose it using a Service. For now, you can use port-forwarding:

kubectl port-forward pod/nginx 8080:80

Then visit localhost:8080 in your browser.

3. How many pods can I start?

The number of pods you can start depends on your cluster's resources. Each node has a limit based on its CPU and memory. You can start multiple pods until you hit these resource limits.

Best Practices and Additional Information

1. Resource Requests and Limits: When creating pods, specify resource requests and limits to ensure efficient resource allocation:

kubectl run nginx --image=nginx --port=80 --requests=cpu=100m,memory=128Mi --limits=cpu=500m,memory=256Mi

2. Using YAML Files: For more complex configurations, use YAML files instead of command-line arguments:

apiVersion: v1
kind: Pod
metadata:
  name: nginx
spec:
  containers:
  - name: nginx
    image: nginx
    ports:
    - containerPort: 80

Apply: kubectl apply -f nginx-pod.yaml.

3. Namespaces: Use namespaces to organize your pods, especially in shared clusters:

kubectl create namespace myapp
kubectl run nginx --image=nginx --port=80 -n myapp

4. Health Checks: Implement liveness and readiness probes for your pods to ensure they're healthy and ready to serve traffic.
5. Pod Lifecycle: Understand the pod lifecycle (Pending, Running, Succeeded, Failed, Unknown) to better manage your applications.
